4" Round Gromment Mount

4" ROUND GROMMENT MOUNT

Alternate Lookup: M85401R

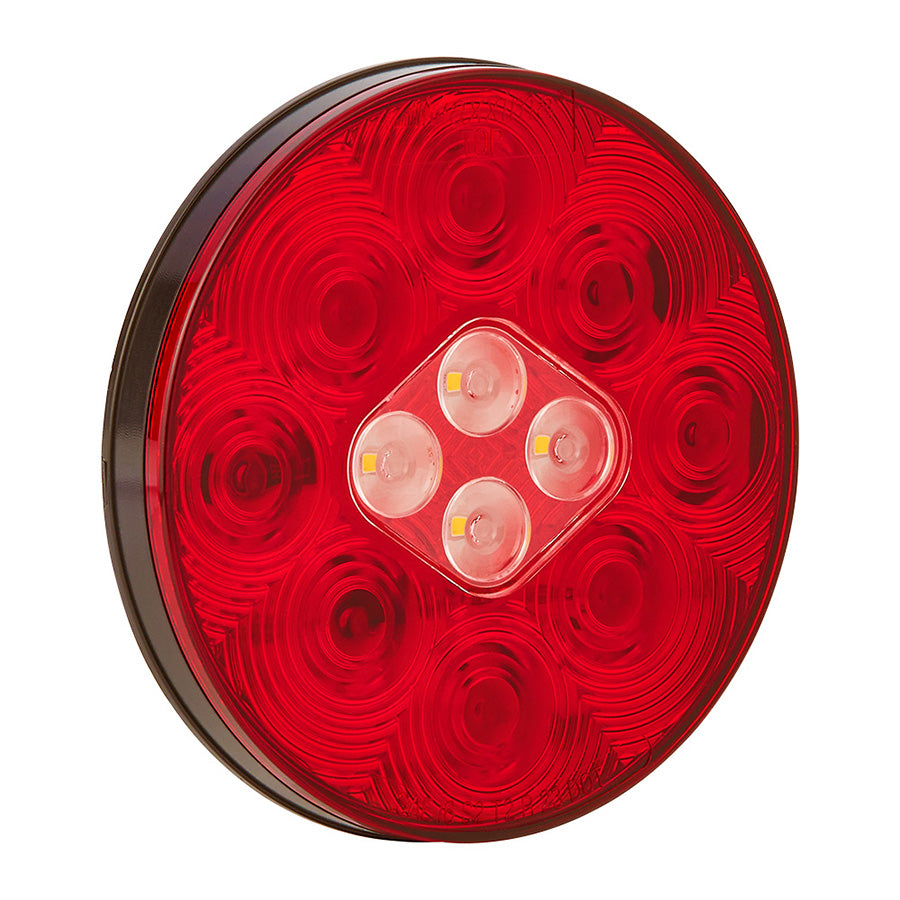

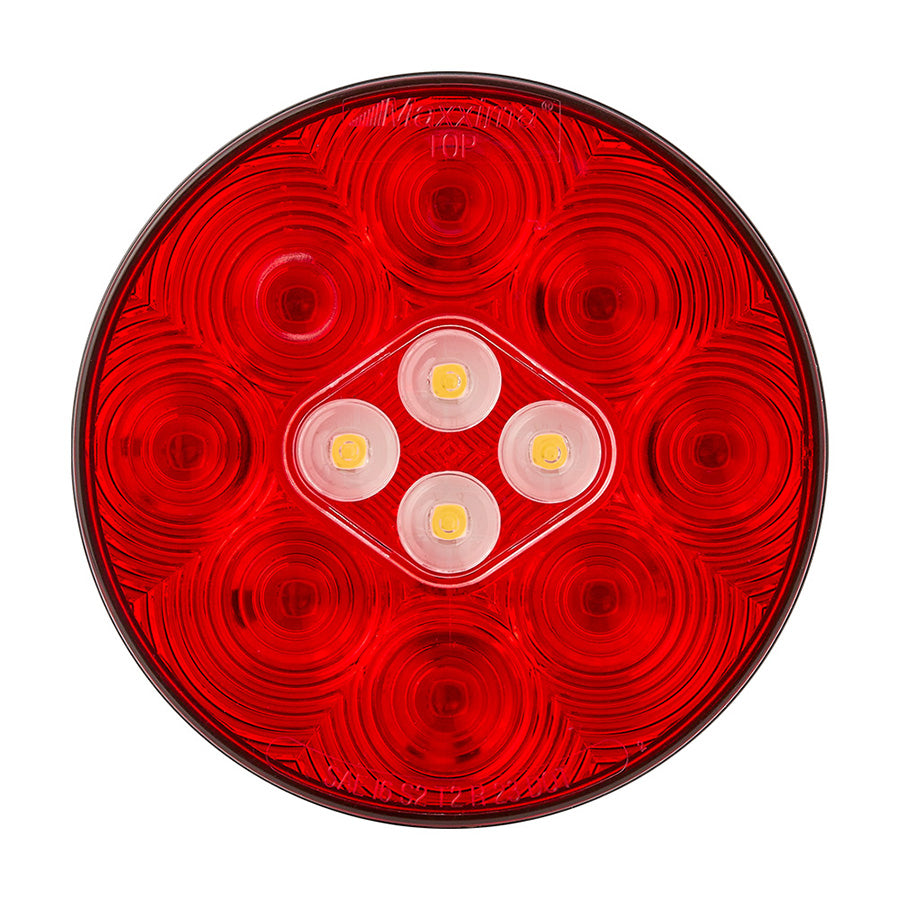

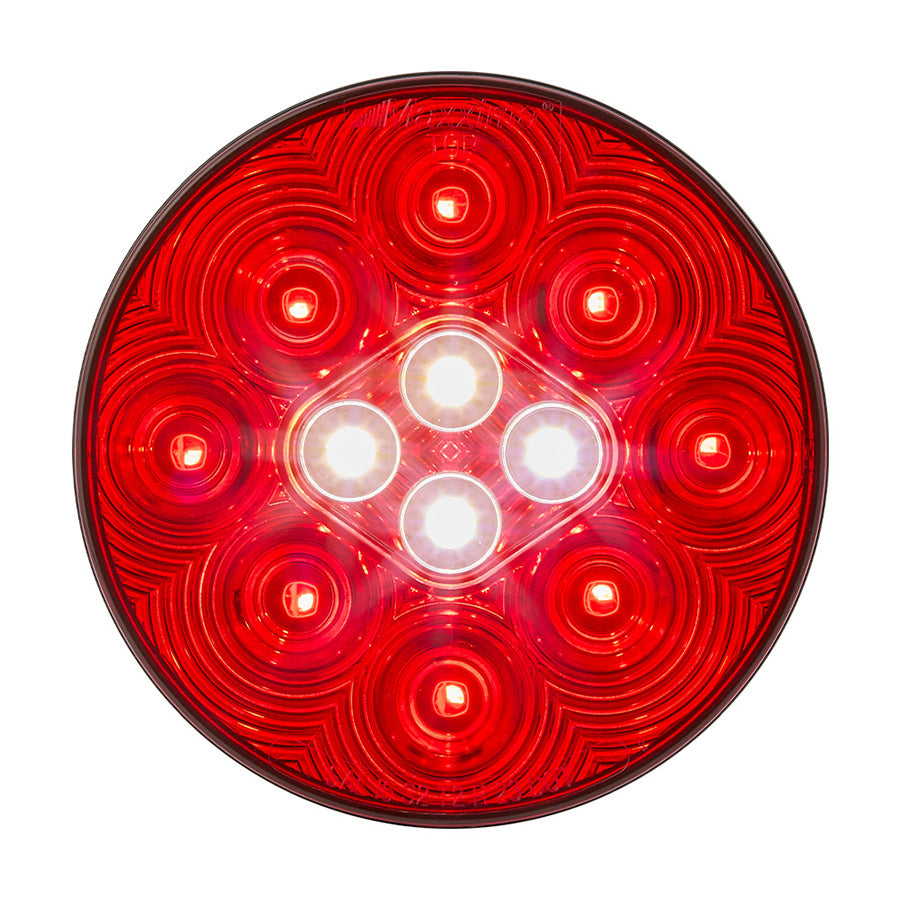

The M85401R is a 4” round LED combination stop/turn/tail and back-up light. It fits industry-standard 4 inch grommets (M50400-B sold separately). Its integrated 4-pin DryFit connector provides a weather-tight electrical connection and includes the mating 4-pin pigtail. This light features an acrylic lens and ABS housing and is backed by a 5-year warranty.

Features & Benefits:

• 4” Round Hybrid Combination Stop/Turn/Tail & Back-Up Lamp
• 4” Grommet Mount (M50400-B Sold Separately)
• 4-Pin DryFit Connector (Pigtail Included)
• Acrylic Lens / ABS Housing
• 5 Year Warranty

Specifications:

• Voltage 12.8VDC
• Amp Draw Stop 180mA, Tail 10mA, B/U 250mA
• Dimensions 4.3” Diam. x 1.4”D
• Mounting 4” Grommet

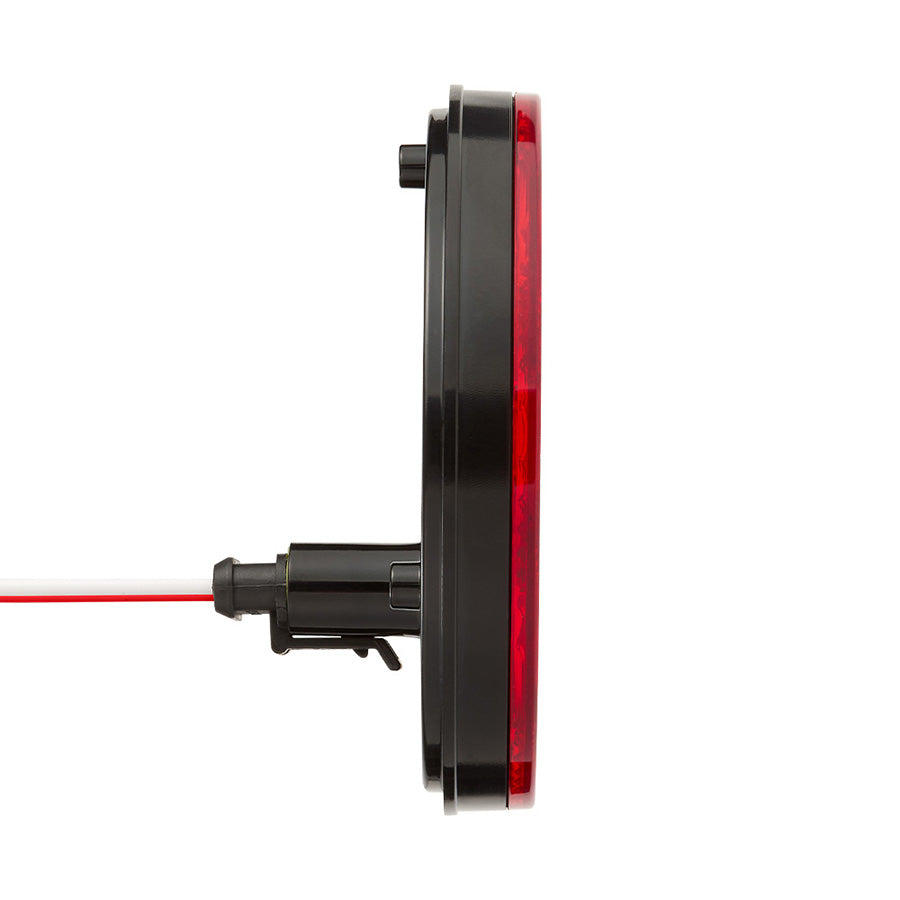

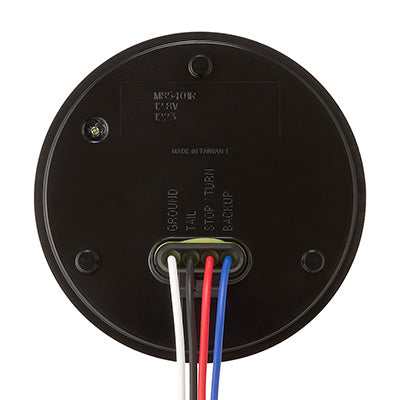

• Connector Integrated 4-Pin DryFit + Includes Pigtail
• LEDs 13 (9 Red, 4 White)
• Legal Heading I6 S2 T2 R
• SAE J593, J2040, J2261
