2.5" LED, RED M11300R

Alternate Lookup: M11300R

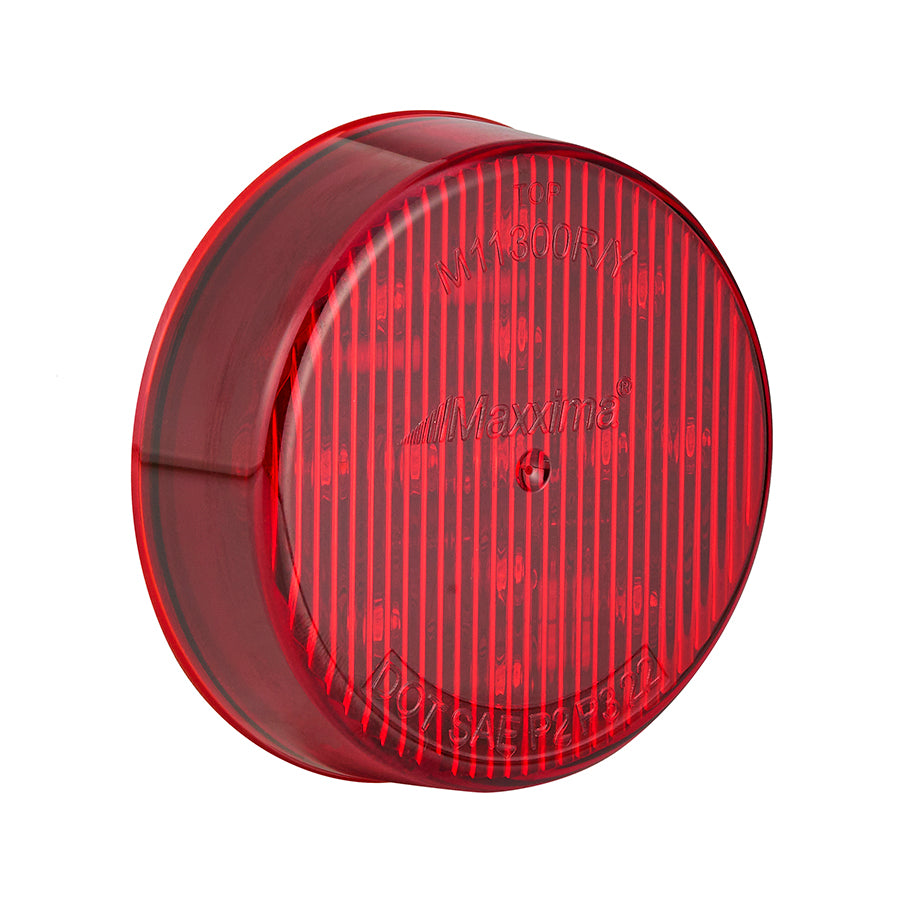

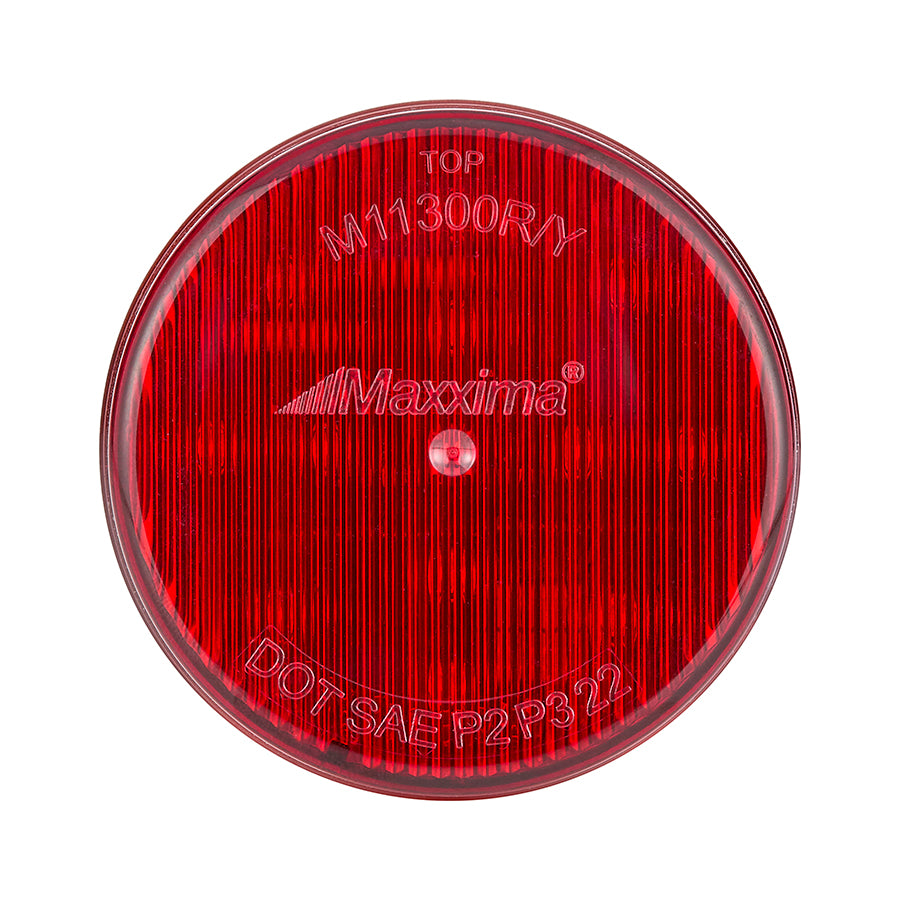

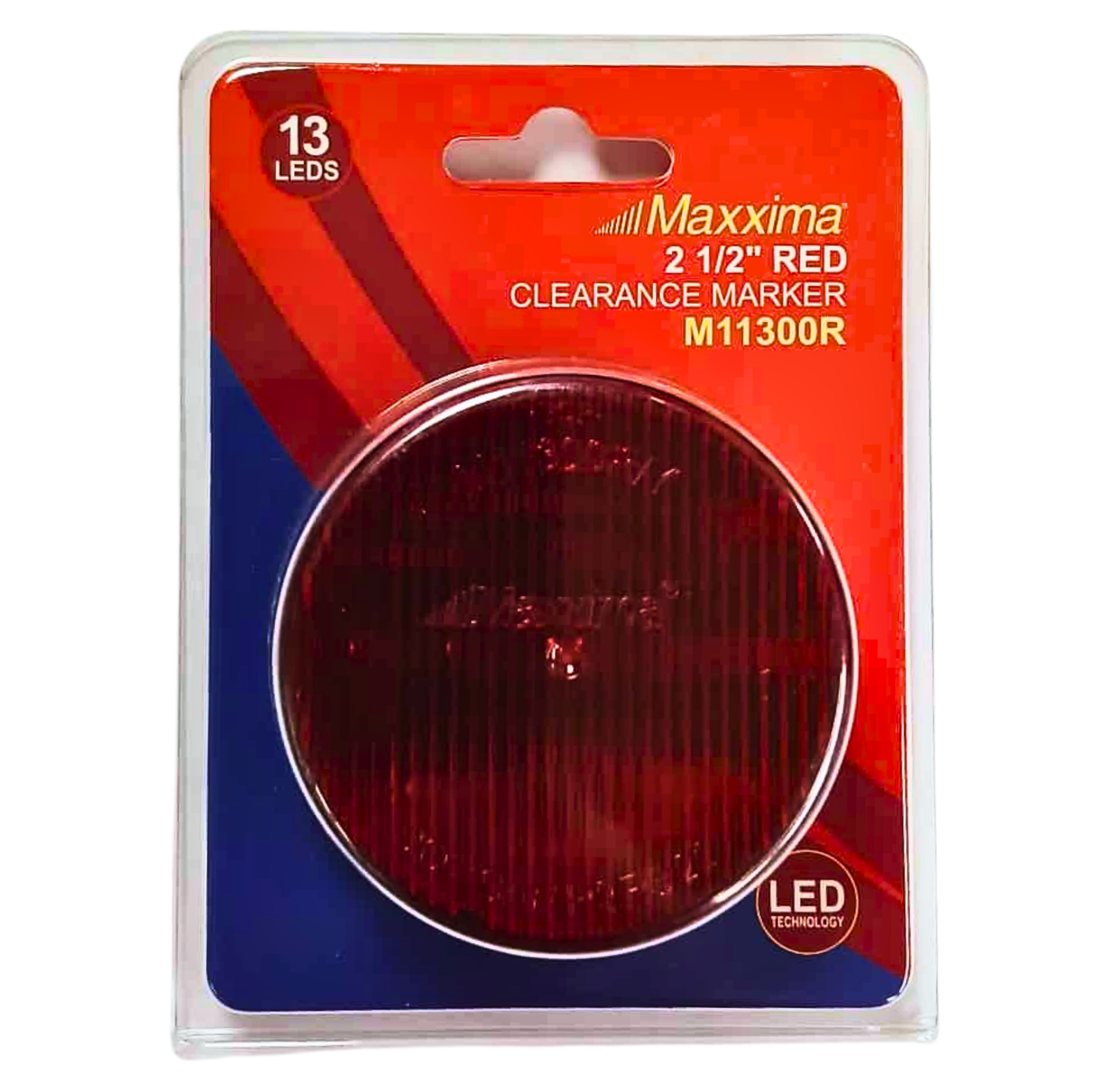

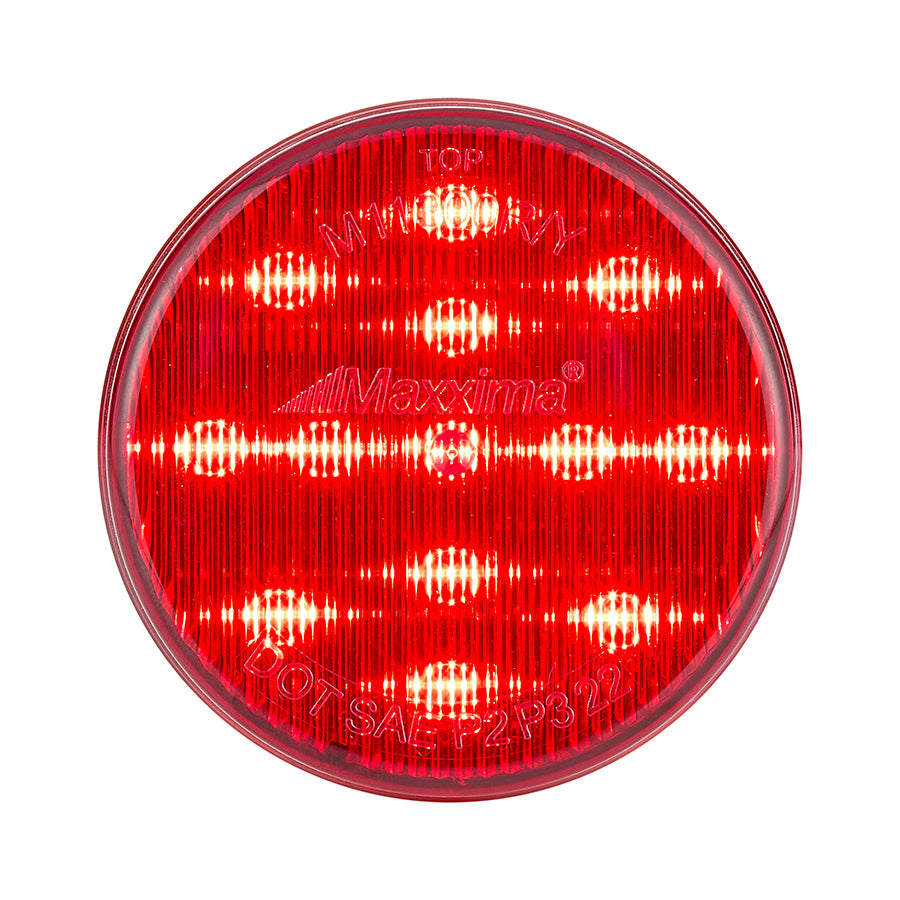

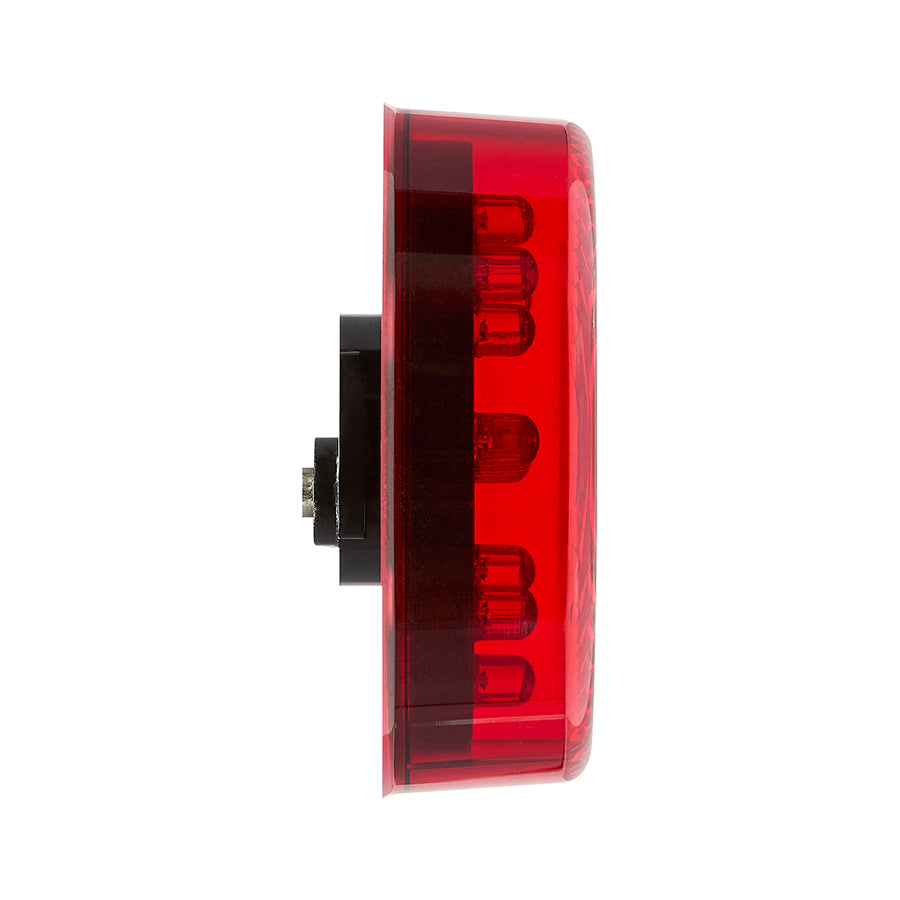

The M11300R is a 2.5” red clearance marker lamp. With 13 LEDs, it is the original “High Count” and provides exceptional visibility. It can be grommet mounted or bracket mounted with the integrated twist-lock housing. It complies with P2 P3 DOT requirements and incorporates an industry standard PL-10 connector. This light features a polycarbonate lens & housing and is backed by a 10-year warranty.

Features & Benefits:

• High Diode Count, 13 LED

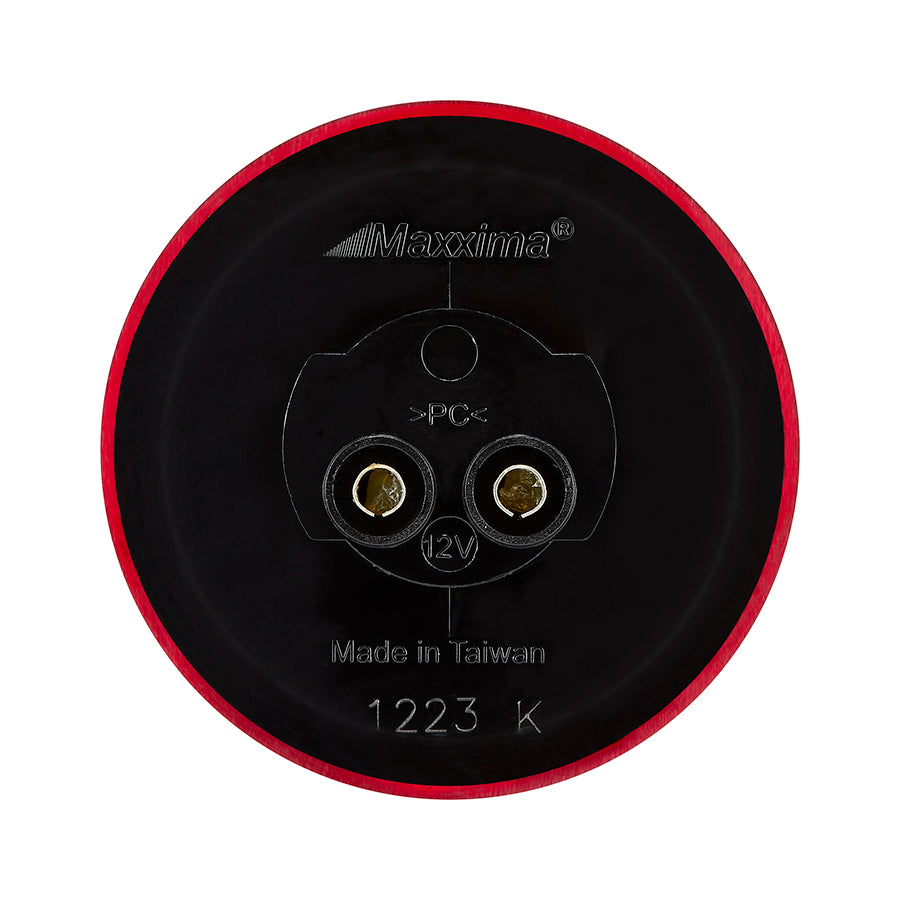

• Industry Standard PL-10 Connector
• Plated Connectors
• Polycarbonate Lens & Housing
• Grommet or Bracket Mount
• M50100-B Grommet Sold Separately
• M50153CH Bracket Sold Separately
• 10 Year Warranty

Specifications:

• LEDs 13
• Voltage 12.8VDC
• Amp Draw 100mA
• Dimensions 2.5" Diam. x 0.7” D
• Mounting 2.5” Grommet
• Connector PL-10 Integrated
• Legal Heading P2 P3
• DOT/SAE J592 J2042
