3/4" Round Amber Clearance Marker / Auxiliary Turn M09300YAT

3/4 ROUND AMBER CLEARANCE/A

Alternate Lookup: M09300YAT

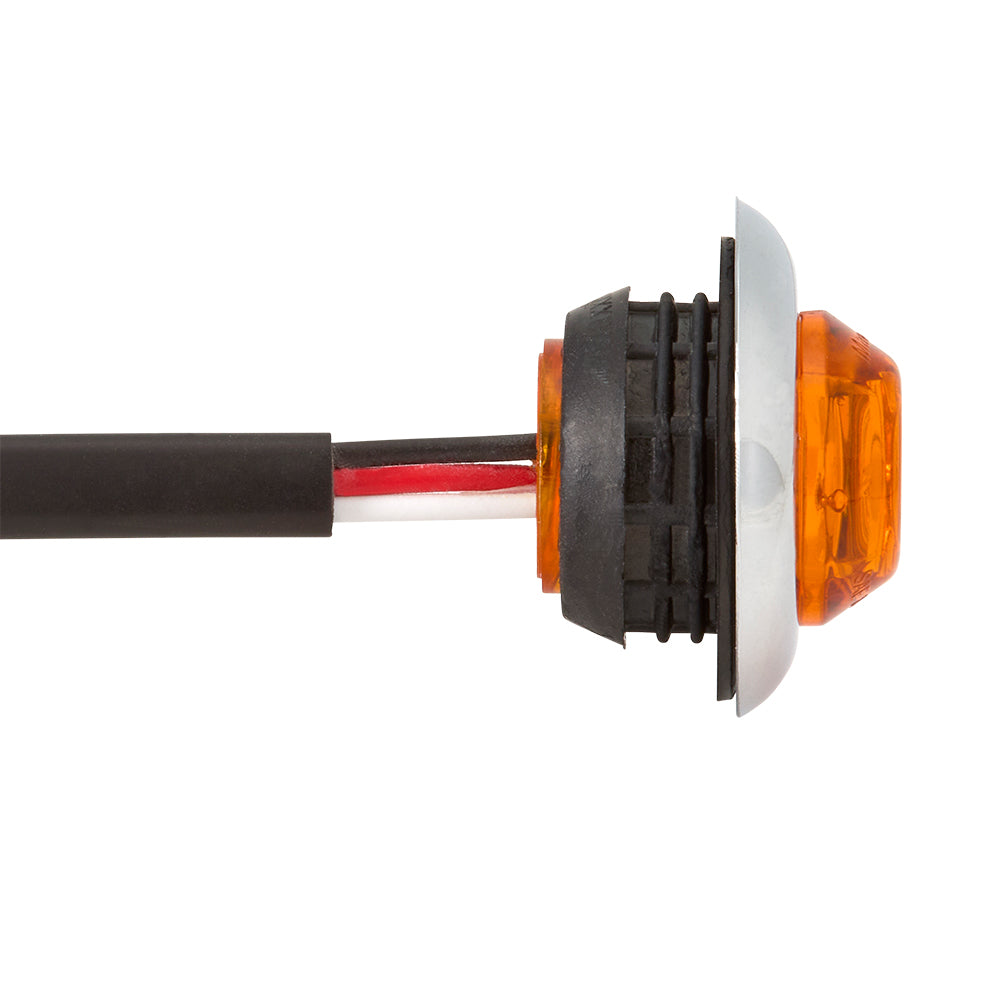

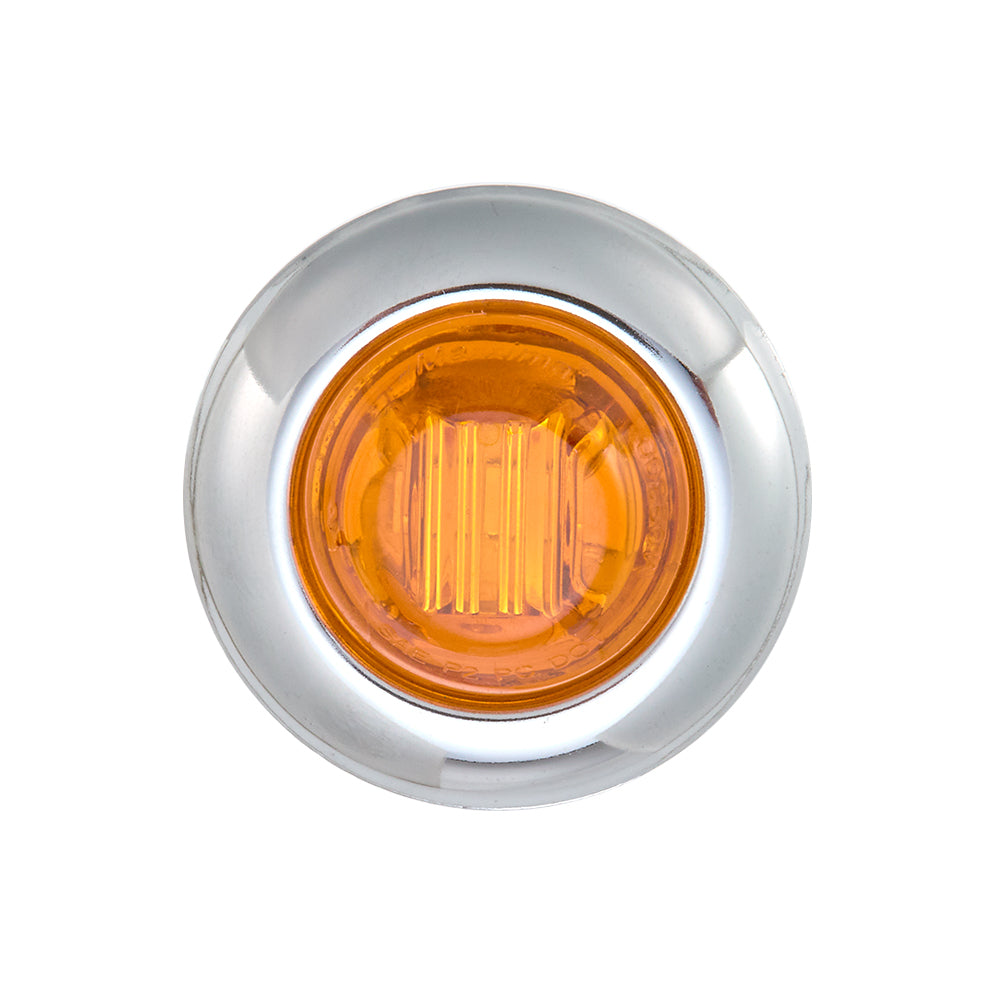

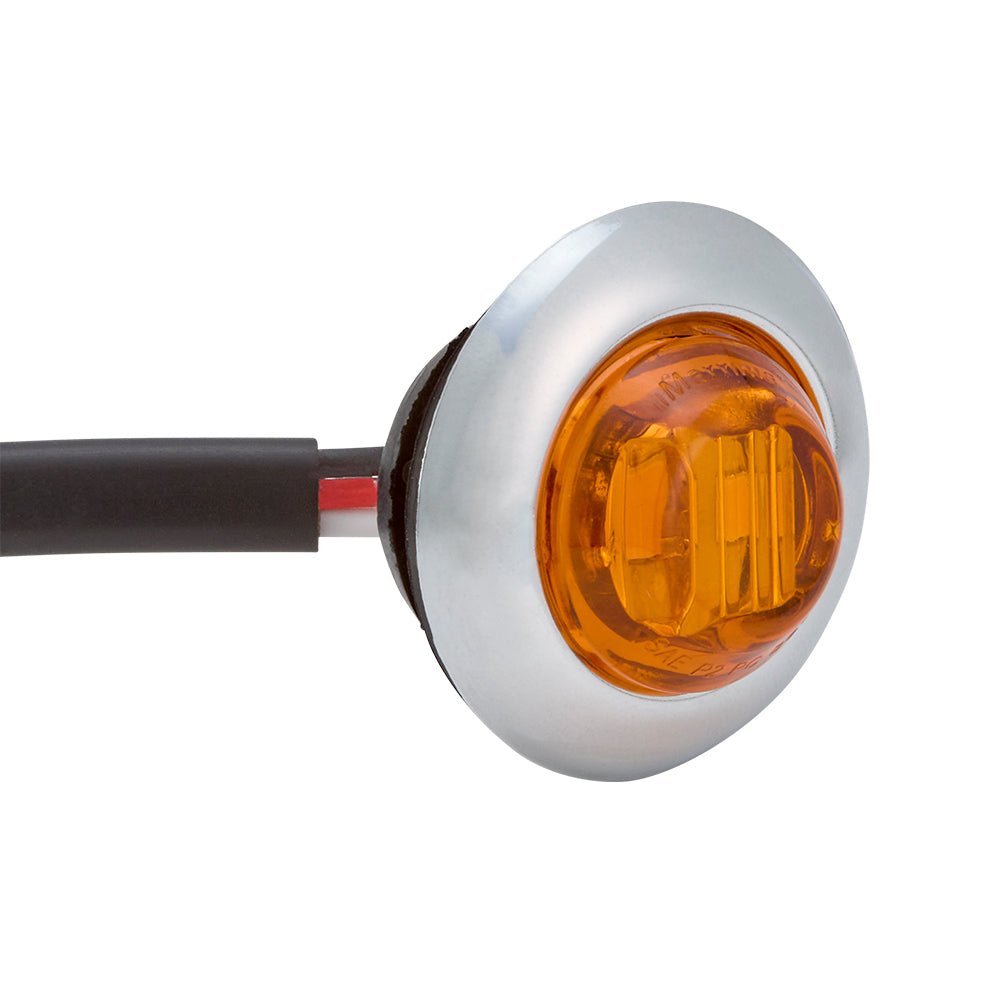

The M09300YAT is a 3/4” grommet mounted amber clearance marker lamp / auxiliary turn. With 3 LEDs and a domed lens design, it provides a wide 180-degree horizontal beam for maximum visibility. It complies with P2 P3 and PC2 DOT requirements, and includes a 3rd wire for the aux. turn function. It includes the mounting grommet, which requires a 3/4" hole. This light features a polycarbonate lens & housing and is backed by a 5-year warranty.

Features & Benefits:

• Includes Mounting Grommet
• Requires 3/4" Hole
• 180° Visibility - PC/PC2 Rated
• 3rd Wire for Aux. Turn Function
• Polycarbonate Lens & Housing
• 5 Year Warranty

Specifications:

• LEDs 3
• Voltage 12.8VDC
• Amp Draw 70mA / 30mA
• Dimensions 3/4" Diam. x 1.0” D
• Mounting Grommet, 3/4" Hole Cutout

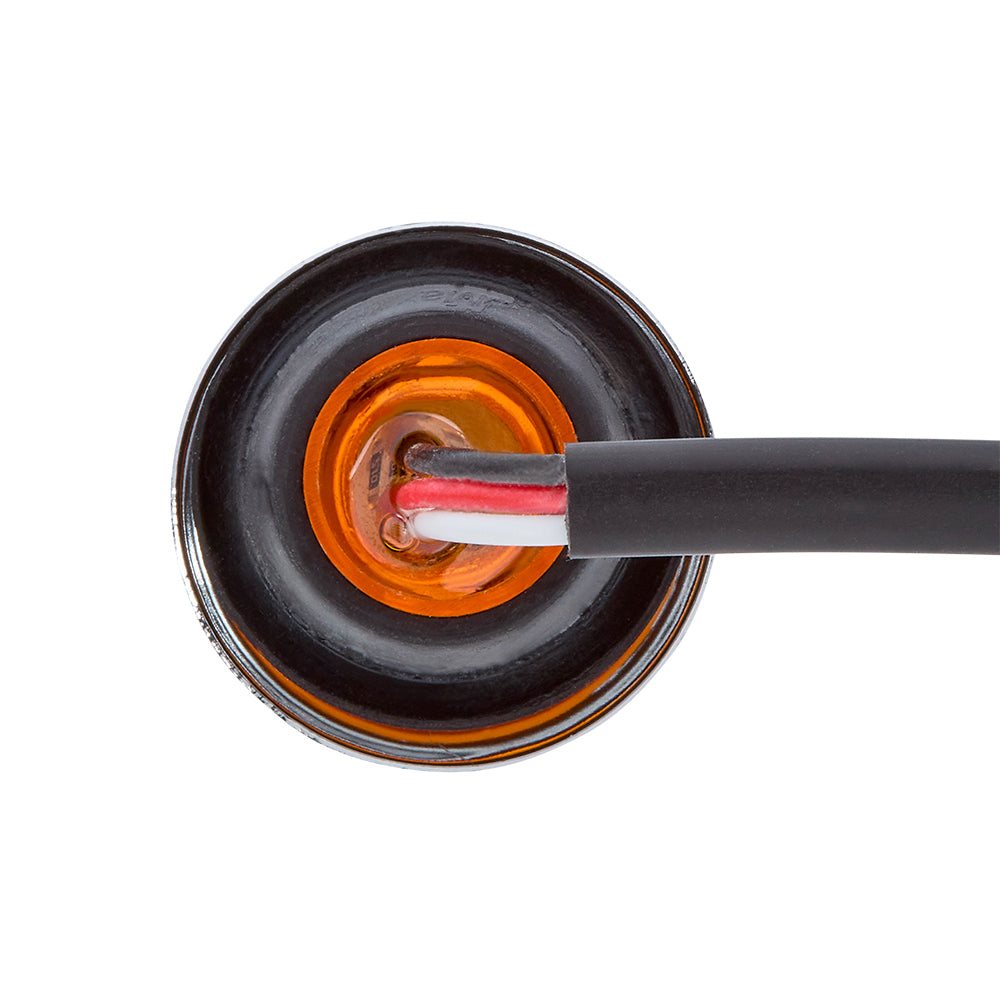

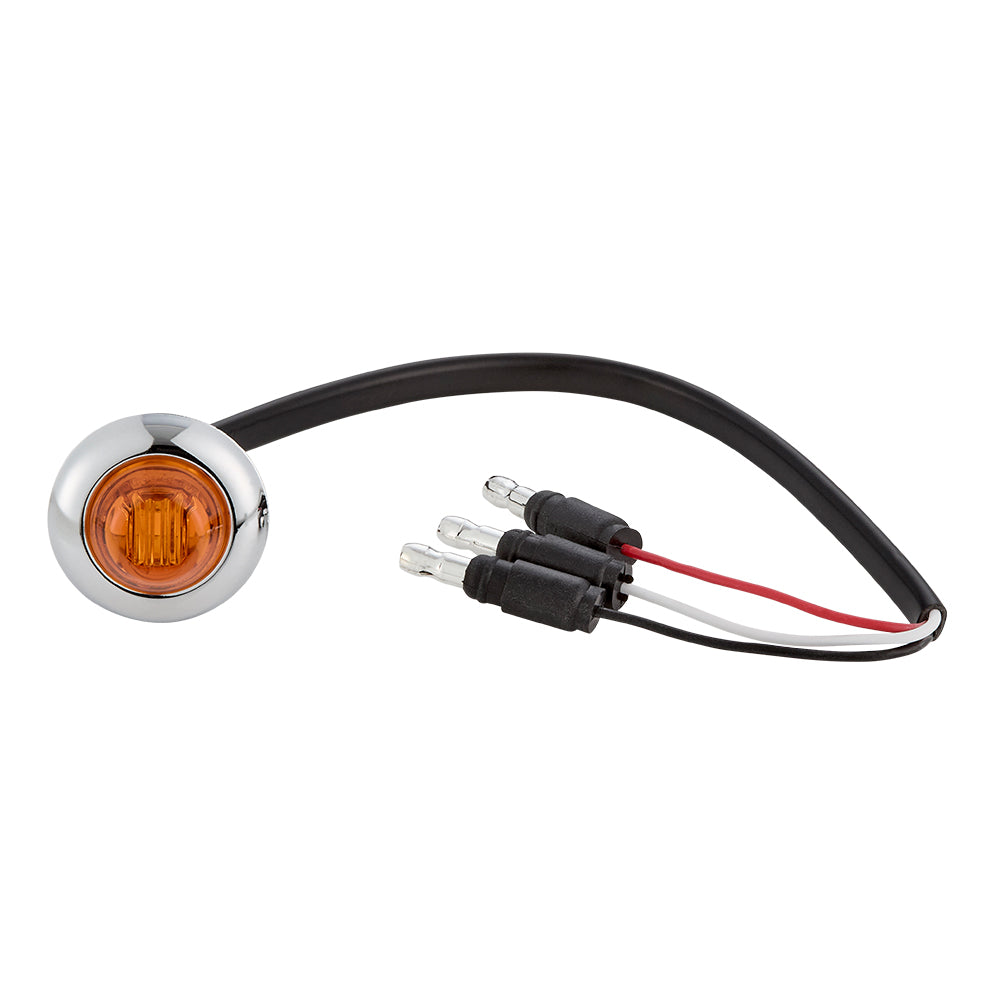

• Connector 2 Jacketed Leads, .180 Bullets, 10"
• Legal Heading P2 P3 PC2
• DOT/SAE J592 J2042
