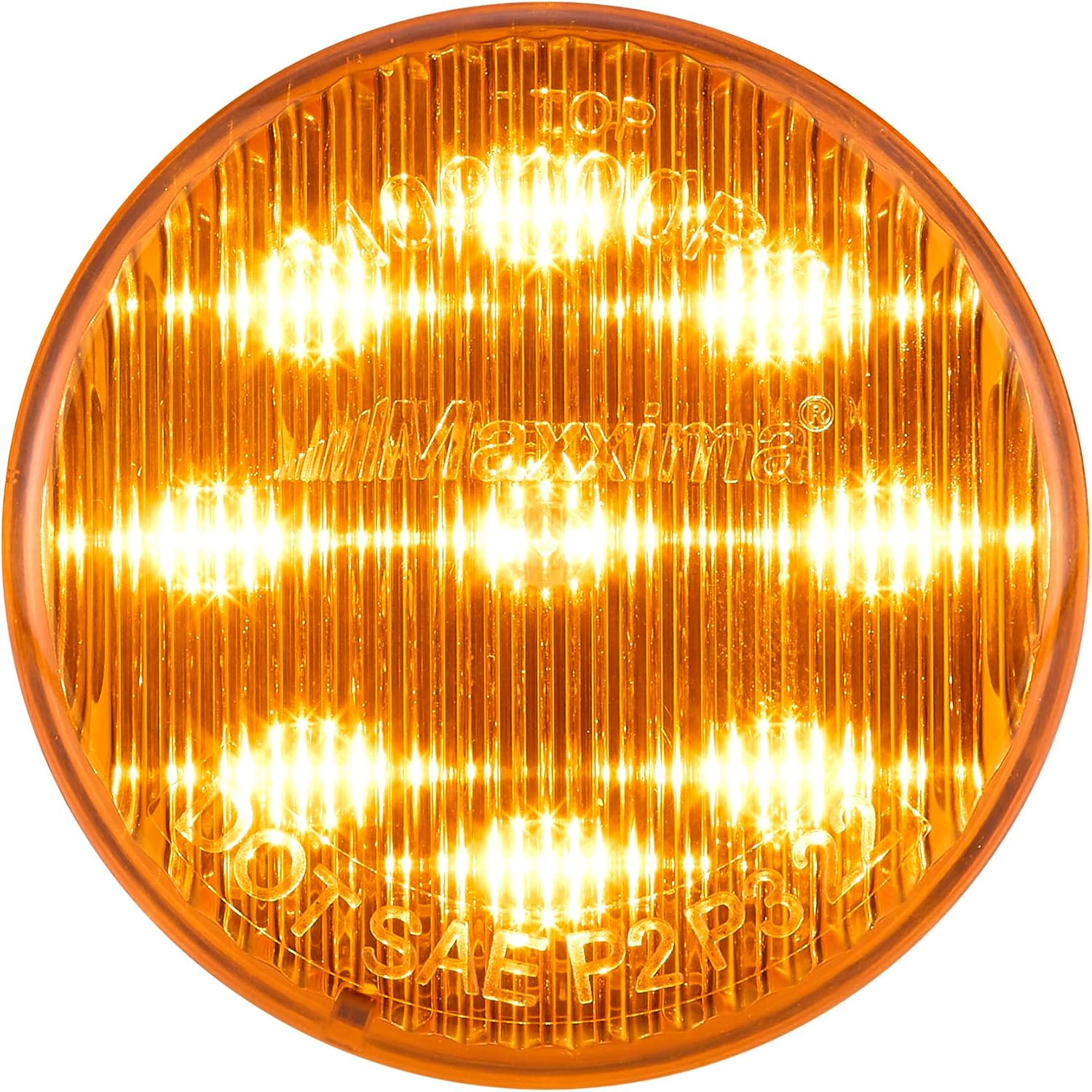

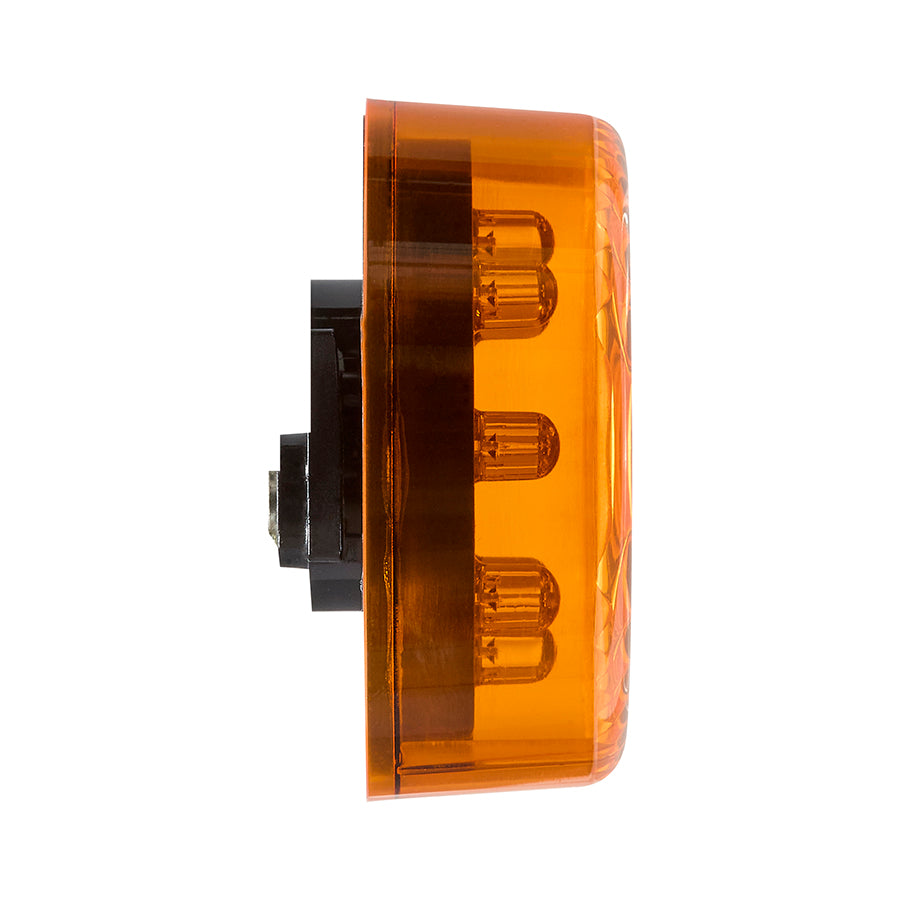

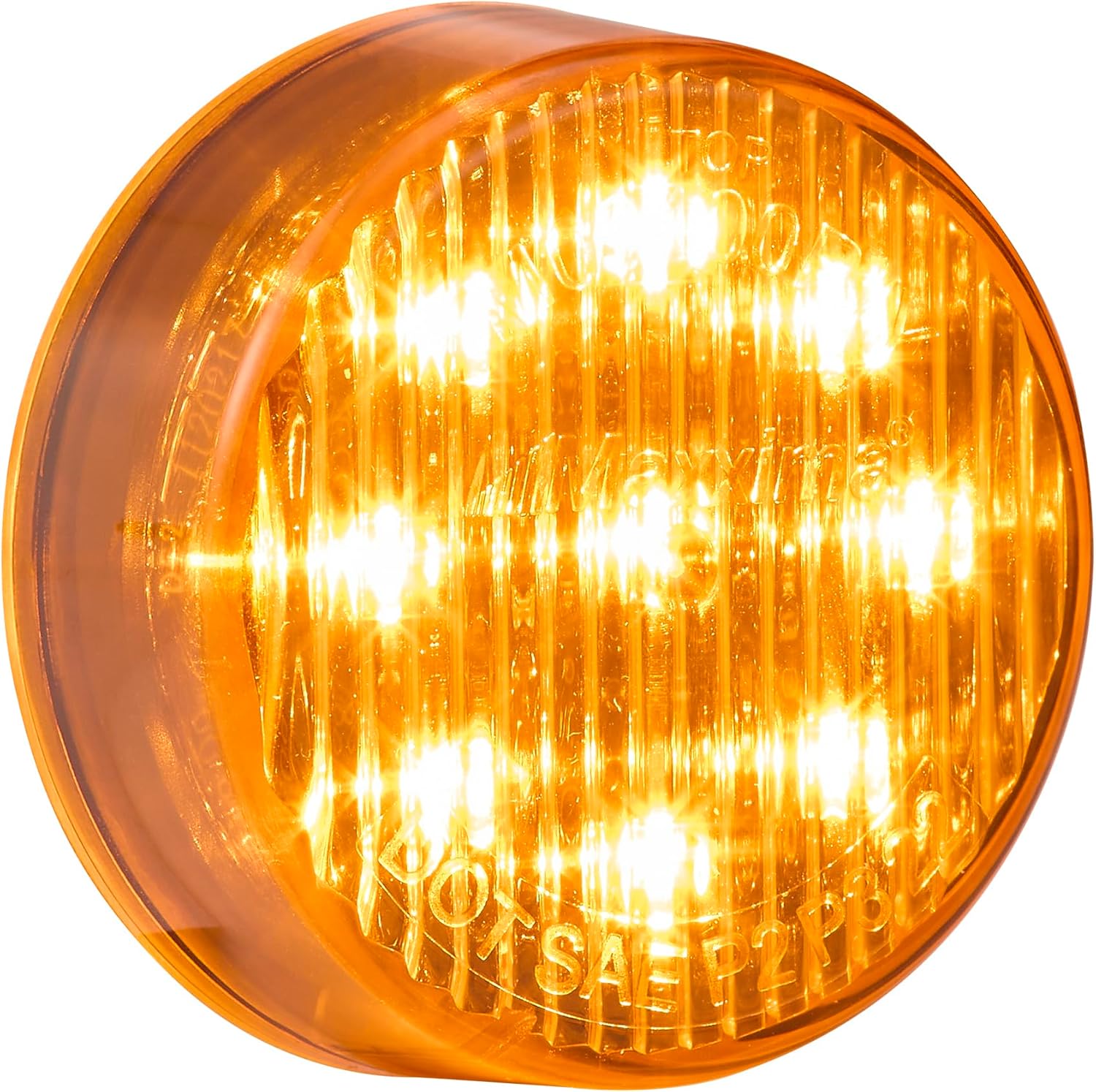

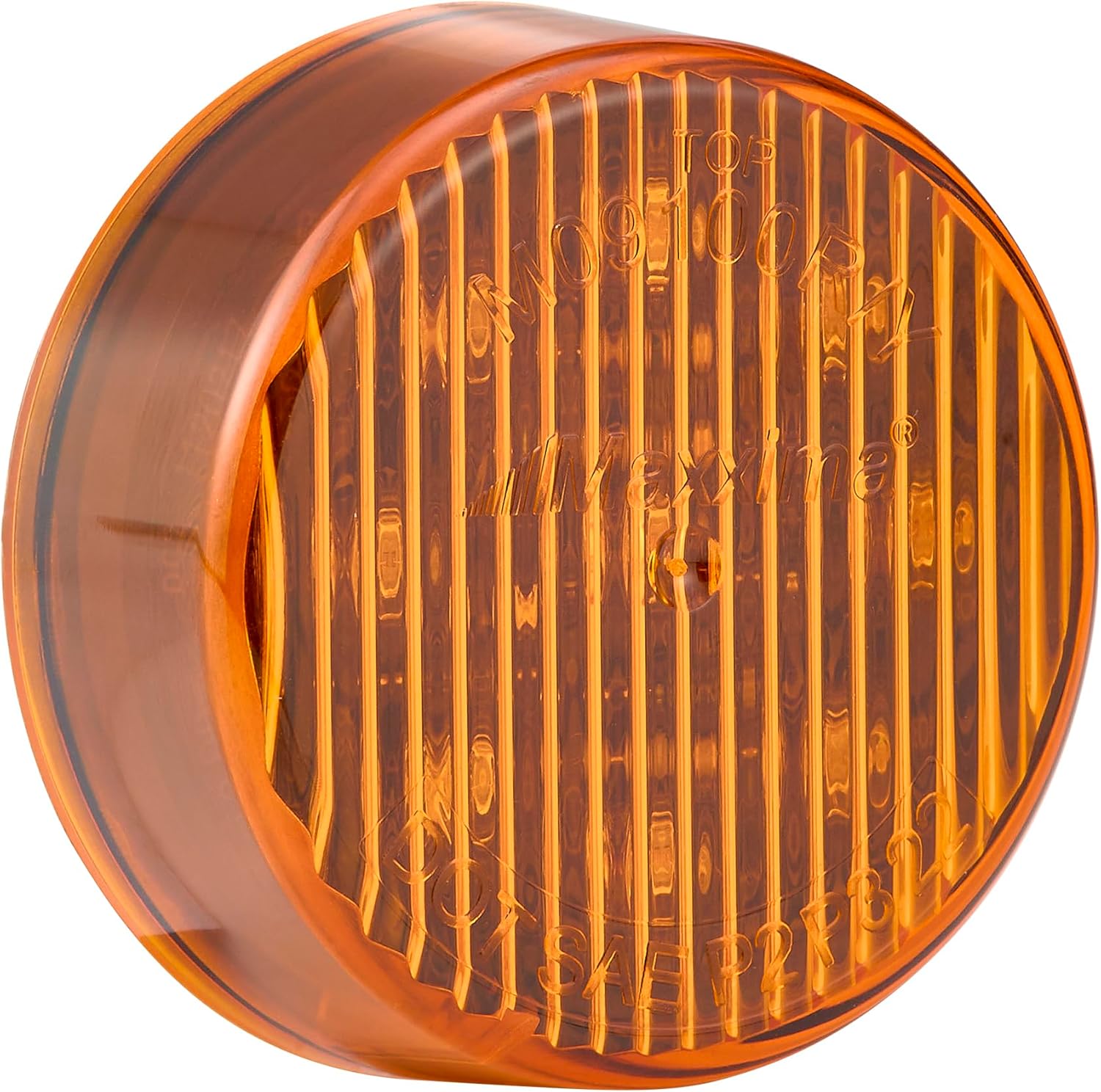

AMBER 2" LED LAMP M09100Y

Alternate Lookup: M09100Y

The M09100Y is a 2” amber clearance marker lamp. With 9 LEDs, it is the original “High Count” and provides exceptional visibility. It can be grommet mounted or bracket mounted with the integrated twist-lock housing. It complies with P2 P3 DOT requirements and incorporates an industry standard PL-10 connector. This light features a polycarbonate lens & housing and is backed by a 10-year warranty.

Features & Benefits:

• High Diode Count, 9 LED
• Industry Standard PL-10 Connector
• Plated Connectors
• Polycarbonate Lens & Housing
• Grommet or Bracket Mount
• M50300-B Grommet Sold Separately
• M50313CH Bracket Sold Separately
• 10 Year Warranty

Specifications:

• LEDs 9
• Voltage 12.8VDC
• Amp Draw 100mA
• Dimensions 2.0" Diam. x 0.7” D
• Mounting 2” Grommet

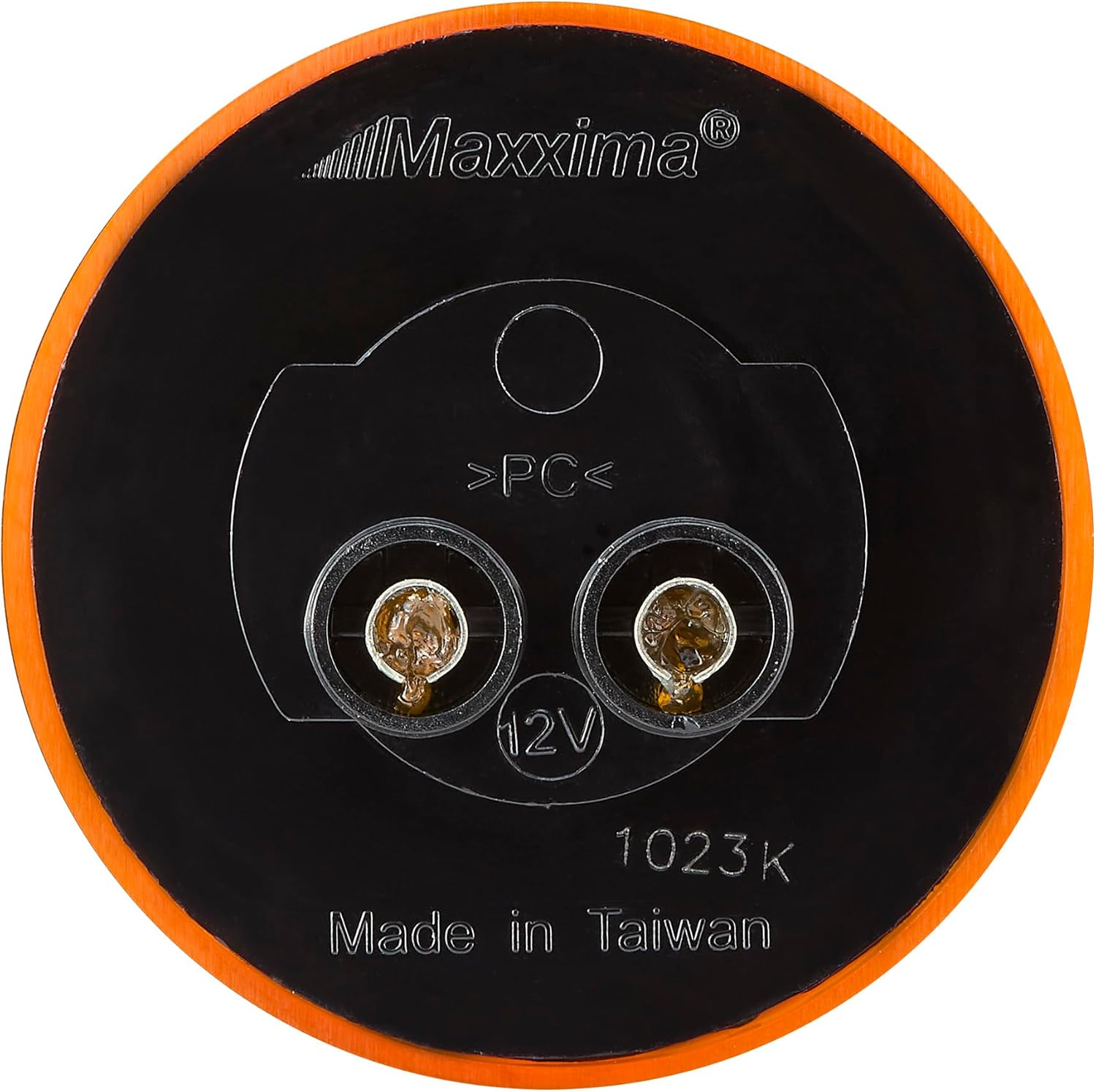

• Connector PL-10 Integrated
• Legal Heading P2 P3
• DOT/SAE J592 J2042
