P2PC CM RED M09300R

Alternate Lookup: M09300R

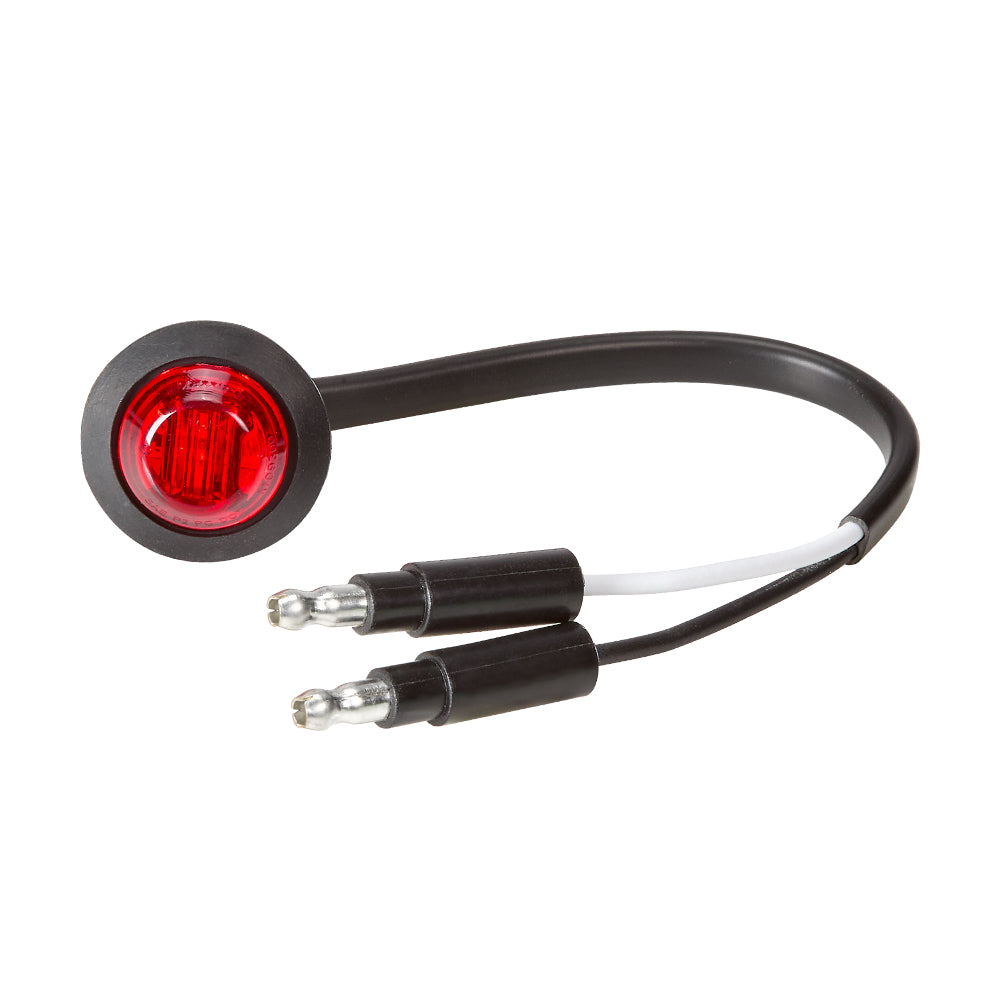

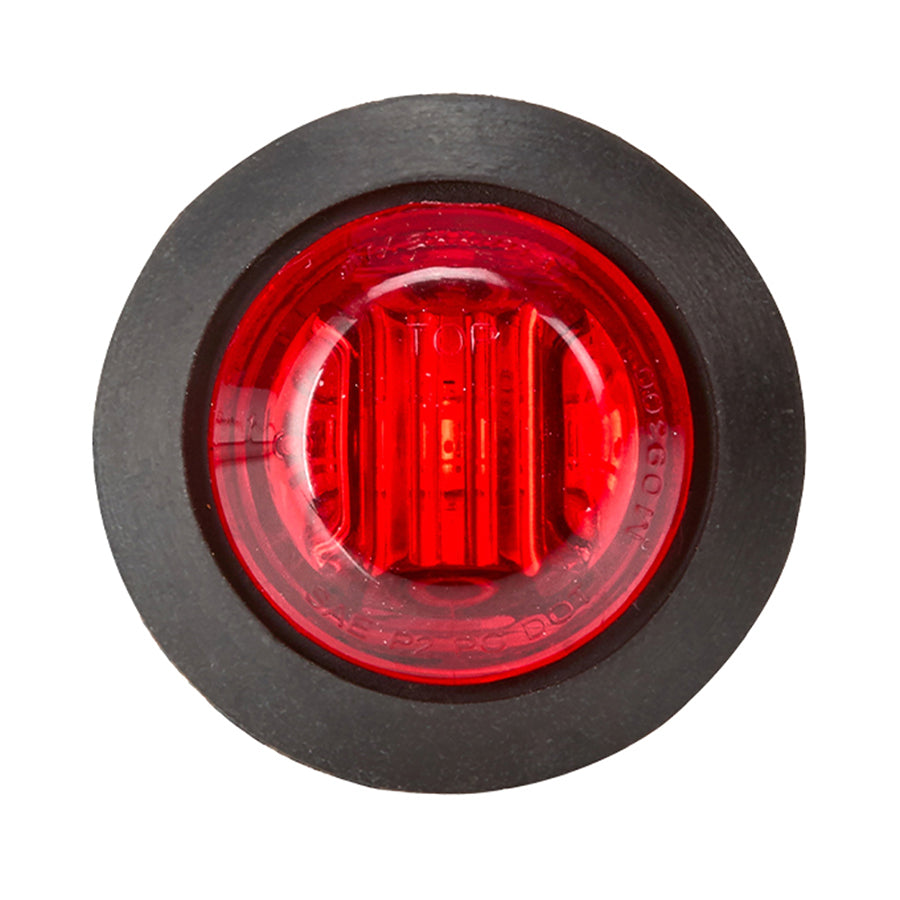

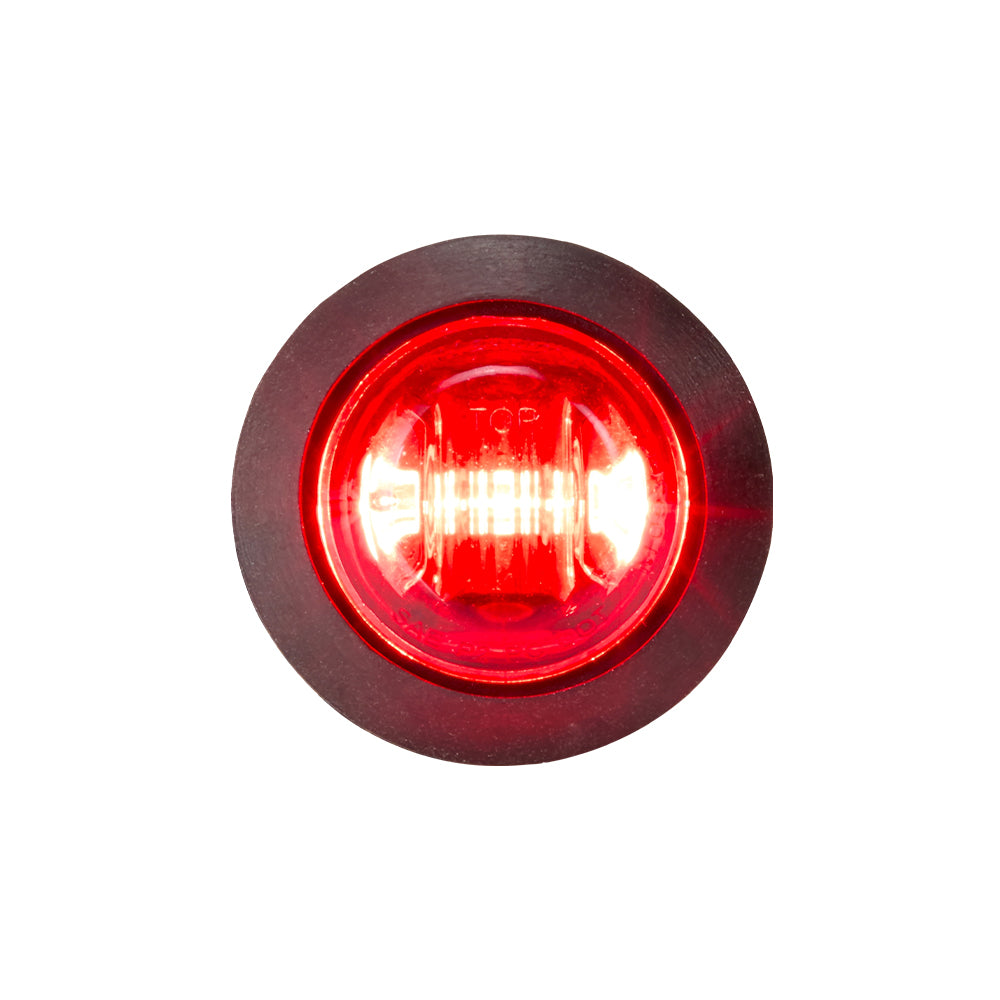

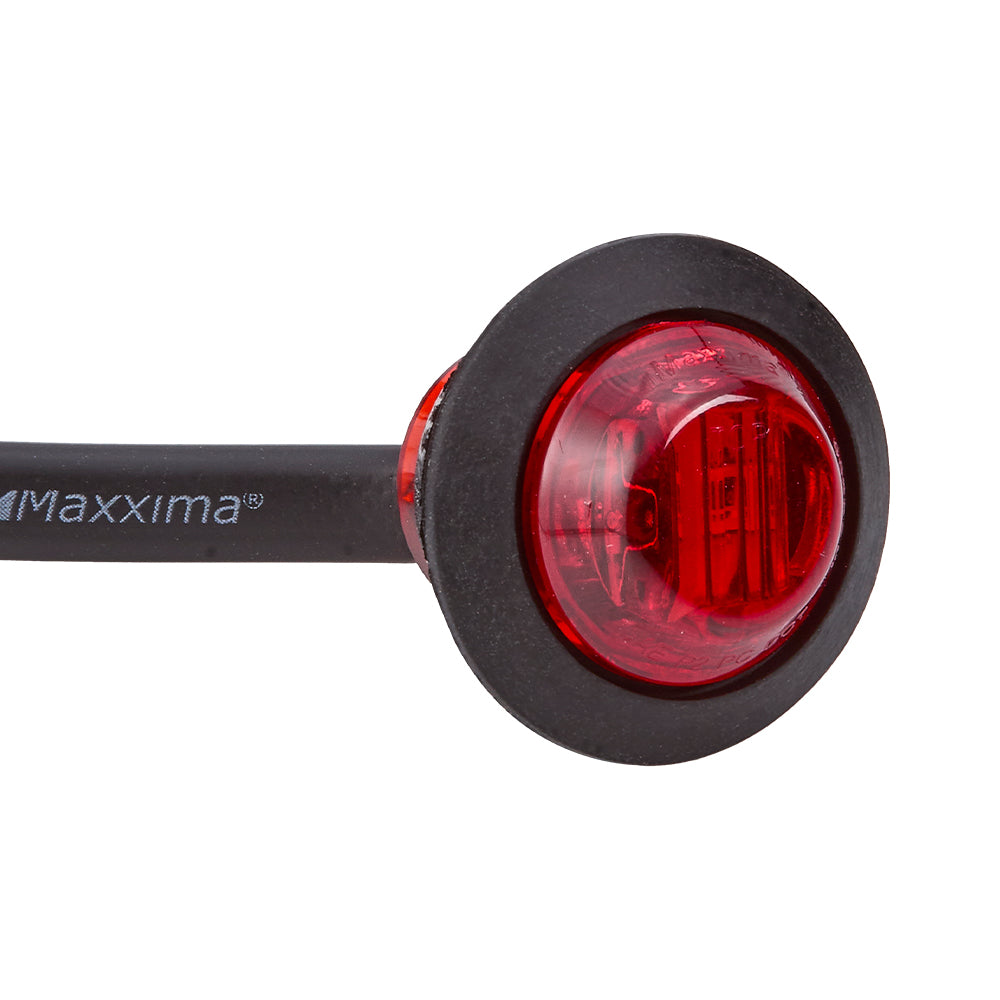

The M09300R is a 3/4” grommet mounted red clearance marker lamp. With 3 LEDs and a domed lens design, it provides a wide 180-degree horizontal beam for maximum visibility.  It complies with P2 P3 and PC2 DOT requirements.  It includes the mounting grommet which requires a 3/4" hole. This light features a polycarbonate lens & housing and is backed by a 5-year warranty.

Features & Benefits:

• Includes Mounting Grommet
• Requires 3/4" Hole
• 180° Visibility - PC/PC2 Rated
• Also Available in Bulk Pack (M09300R-X)
• Optional Steel Bezel (M50112)
• Polycarbonate Lens & Housing
• 5 Year Warranty

Specifications:

• LEDs 3
• Voltage 12.8VDC
• Amp Draw 60mA
• Dimensions 3/4" Diam. x 1.0” D
• Mounting Grommet, 3/4" Hole Cutout
• Connector 2 Jacketed Leads, .180 Bullets, 7"
• Legal Heading P2 P3 PC2
• DOT/SAE J592 J2042
